washing machines Inlet Magnetic Valve : IV-016

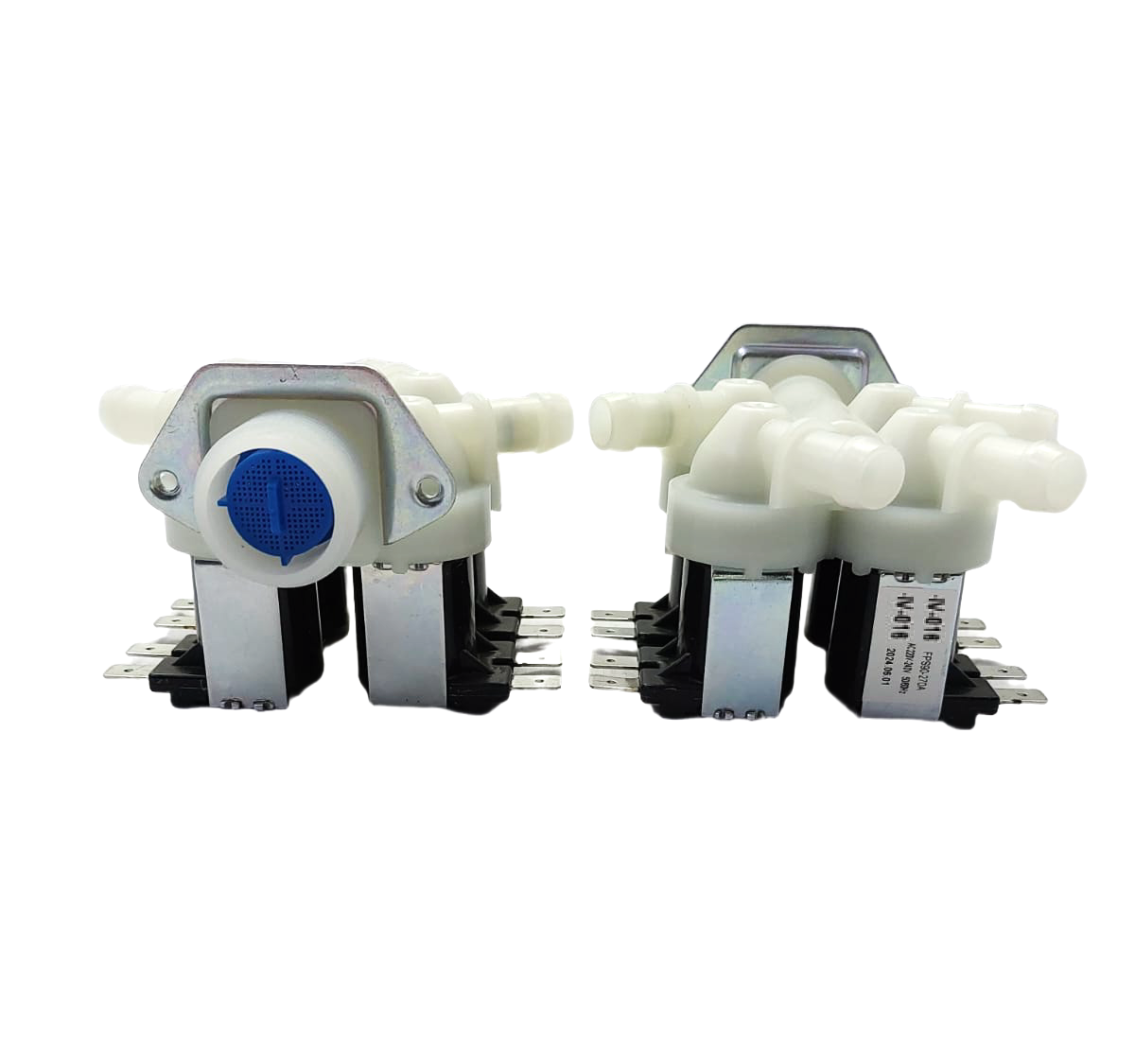

This image displays the IV-016 Inlet Magnetic Valve, a specialized replacement part designed for washing machines that require complex water distribution.
🔍 Technical Specifications
- Model Number: IV-016 (Manufacturer model: FPS-180A)
- Valve Type:Â Triple solenoid inlet valve (3-way head)
- Voltage: AC 220V–240V
- Frequency:Â 50/60Hz
- Operating Pressure: 0.02–1.0 MPa (0.2–10 bar)
⚙️ Design & Features
- Triple Solenoid:Â Features three independent black solenoid coils. This allows the machine to direct water to three different compartments (e.g., pre-wash, main wash, and fabric softener).
- Inlet Connection:Â Standard threaded male connector with a blue mesh debris filter.
- Outlet Ports:Â Three ribbed plastic hose barbs positioned to accommodate internal plumbing.
- Terminals:Â Six spade-terminal connectors (two for each solenoid) for individual electrical control.
- Mounting: Integrated metal bracket for side-mount installation.
Description
Description
This image displays the IV-016 Inlet Magnetic Valve, a specialized replacement part designed for washing machines that require complex water distribution.
🔍 Technical Specifications
- Model Number: IV-016 (Manufacturer model: FPS-180A)
- Valve Type:Â Triple solenoid inlet valve (3-way head)
- Voltage: AC 220V–240V
- Frequency:Â 50/60Hz
- Operating Pressure: 0.02–1.0 MPa (0.2–10 bar)
⚙️ Design & Features
- Triple Solenoid:Â Features three independent black solenoid coils. This allows the machine to direct water to three different compartments (e.g., pre-wash, main wash, and fabric softener).
- Inlet Connection:Â Standard threaded male connector with a blue mesh debris filter.
- Outlet Ports:Â Three ribbed plastic hose barbs positioned to accommodate internal plumbing.
- Terminals:Â Six spade-terminal connectors (two for each solenoid) for individual electrical control.
- Mounting: Integrated metal bracket for side-mount installation.
