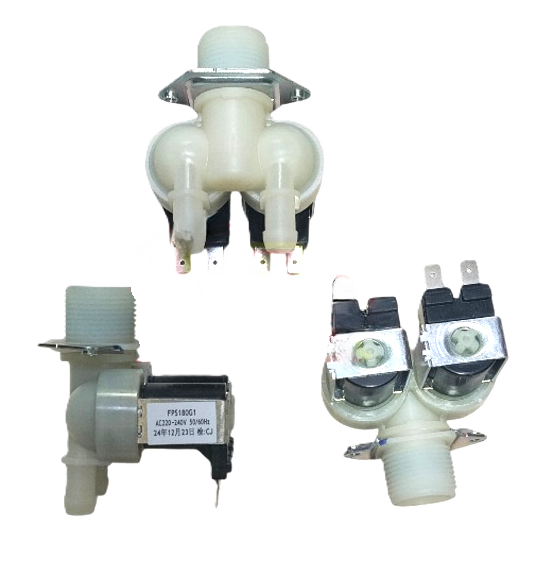

Washing Machines Water Inlet Magnetic Valve : IV-021
This component is the IV-021 Water Inlet Magnetic Valve, a crucial spare part for automatic drum washing machines. Note that while the text in the image labels it as a “Drain Pump,” the physical object and its technical markings identify it as a water inlet valve.
🔍 Technical Specifications
- Model Number: IV-021 (Manufacturer Model: FPS180G1).
- Voltage: AC 220V–240V, 50/60Hz.
- Valve Type: Double solenoid inlet valve (2-way), 180-degree configuration.
- Material: High-quality ABS plastic body with internal magnetic coils.
- Operating Pressure: Typically 0.02–1.0 MPa (approx. 0.2–10 bar).
- Connection: Standard G3/4″ threaded male inlet with two ribbed hose-barb outlets.
⚙️ Function & Compatibility
- Main Function: Automatically opens and closes to control the flow of water into the washing machine based on signals from the control board.
- Compatible Brands: This universal-style valve is frequently used as a replacement part for Midea, Little Swan, Haier, and other automatic drum washing machines.
- Common Symptoms of Failure: Slow water filling, continuous filling even when the machine is off, or no water entering the drum.
Description
Description
This component is the IV-021 Water Inlet Magnetic Valve, a crucial spare part for automatic drum washing machines. Note that while the text in the image labels it as a “Drain Pump,” the physical object and its technical markings identify it as a water inlet valve.
🔍 Technical Specifications
- Model Number: IV-021 (Manufacturer Model: FPS180G1).
- Voltage: AC 220V–240V, 50/60Hz.
- Valve Type: Double solenoid inlet valve (2-way), 180-degree configuration.
- Material: High-quality ABS plastic body with internal magnetic coils.
- Operating Pressure: Typically 0.02–1.0 MPa (approx. 0.2–10 bar).
- Connection: Standard G3/4″ threaded male inlet with two ribbed hose-barb outlets.
⚙️ Function & Compatibility
- Main Function: Automatically opens and closes to control the flow of water into the washing machine based on signals from the control board.
- Compatible Brands: This universal-style valve is frequently used as a replacement part for Midea, Little Swan, Haier, and other automatic drum washing machines.
- Common Symptoms of Failure: Slow water filling, continuous filling even when the machine is off, or no water entering the drum.
