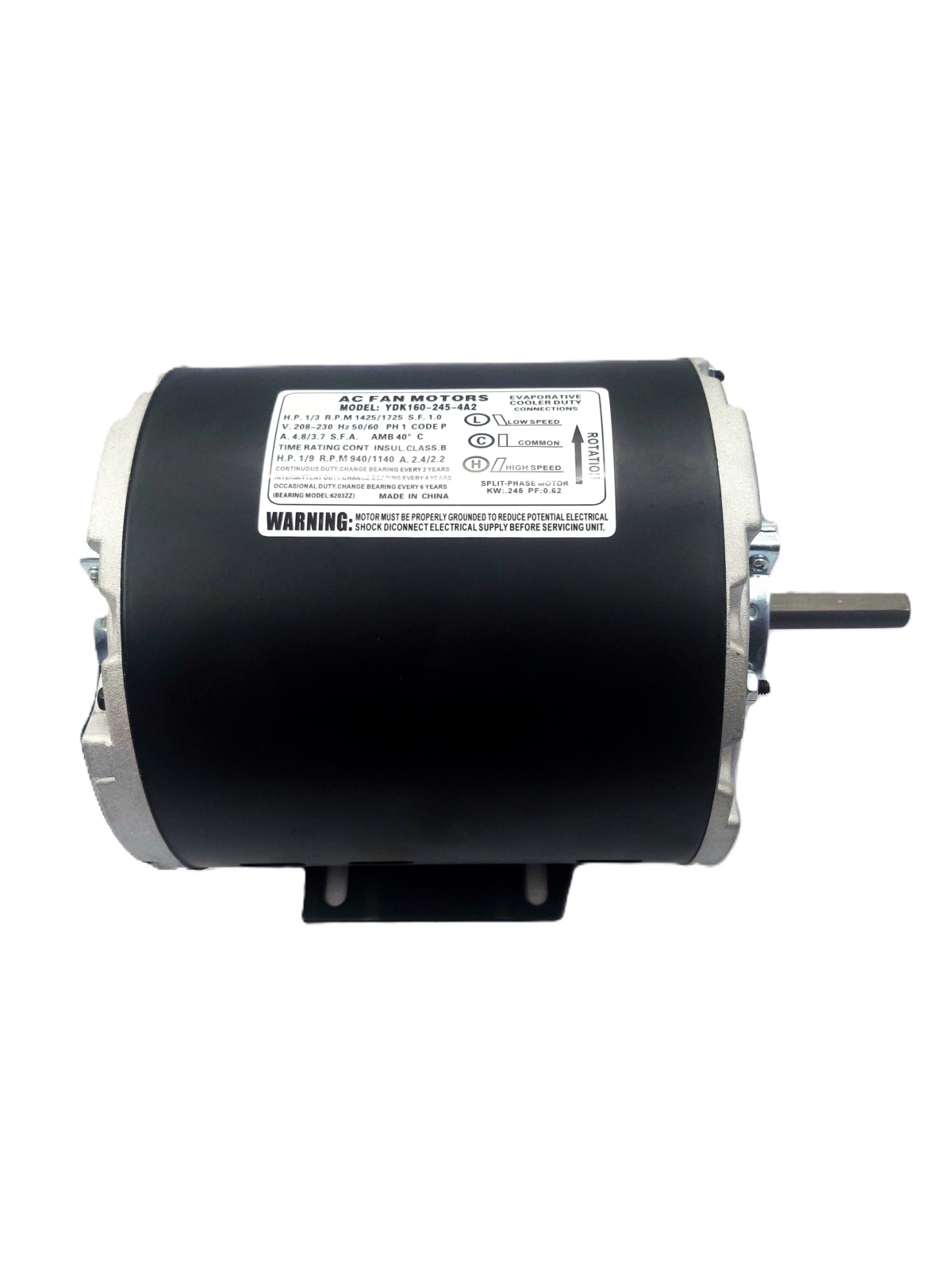

1/3 HP YDK160-245-4A2 AC Cooler Fan Motor
This is an AC Cooler Fan Motor, specifically model YDK160-245-4A2, It is specifically rated for evaporative (desert) cooler duty.
Technical Specifications
-
- Model Number: YDK 160-245-4A2
- Horsepower (H.P.): Dual-speed motor rated at 1/3 HP (High) and 1/9 HP (Low).
- Voltage: 208-230V, 50/60Hz, Single Phase (PH 1).
- Amperage: 4.6A / 3.7A.
- Speed: 1425 / 1725 RPM.
- Operating Temp: Rated for ambient temperatures up to 40°C.
- Bearing Model: 6202Z (Requires periodic maintenance).
Wiring & Connections
The label provides a diagram for standard evaporative cooler duty connections:
- Common (C): Usually connects to the white wire.
- High Speed (H): Usually connects to the black wire.
- Low Speed (L): Usually connects to the red wire.
- Rotation: Look for the arrow on the label to ensure the shaft spins in the correct direction for your fan blade.
Description
Description
This is an AC Cooler Fan Motor, specifically model YDK160-245-4A2, It is specifically rated for evaporative (desert) cooler duty.
Technical Specifications
-
- Model Number: YDK 160-245-4A2
- Horsepower (H.P.): Dual-speed motor rated at 1/3 HP (High) and 1/9 HP (Low).
- Voltage: 208-230V, 50/60Hz, Single Phase (PH 1).
- Amperage: 4.6A / 3.7A.
- Speed: 1425 / 1725 RPM.
- Operating Temp: Rated for ambient temperatures up to 40°C.
- Bearing Model: 6202Z (Requires periodic maintenance).
Wiring & Connections
The label provides a diagram for standard evaporative cooler duty connections:
- Common (C): Usually connects to the white wire.
- High Speed (H): Usually connects to the black wire.
- Low Speed (L): Usually connects to the red wire.
- Rotation: Look for the arrow on the label to ensure the shaft spins in the correct direction for your fan blade.
