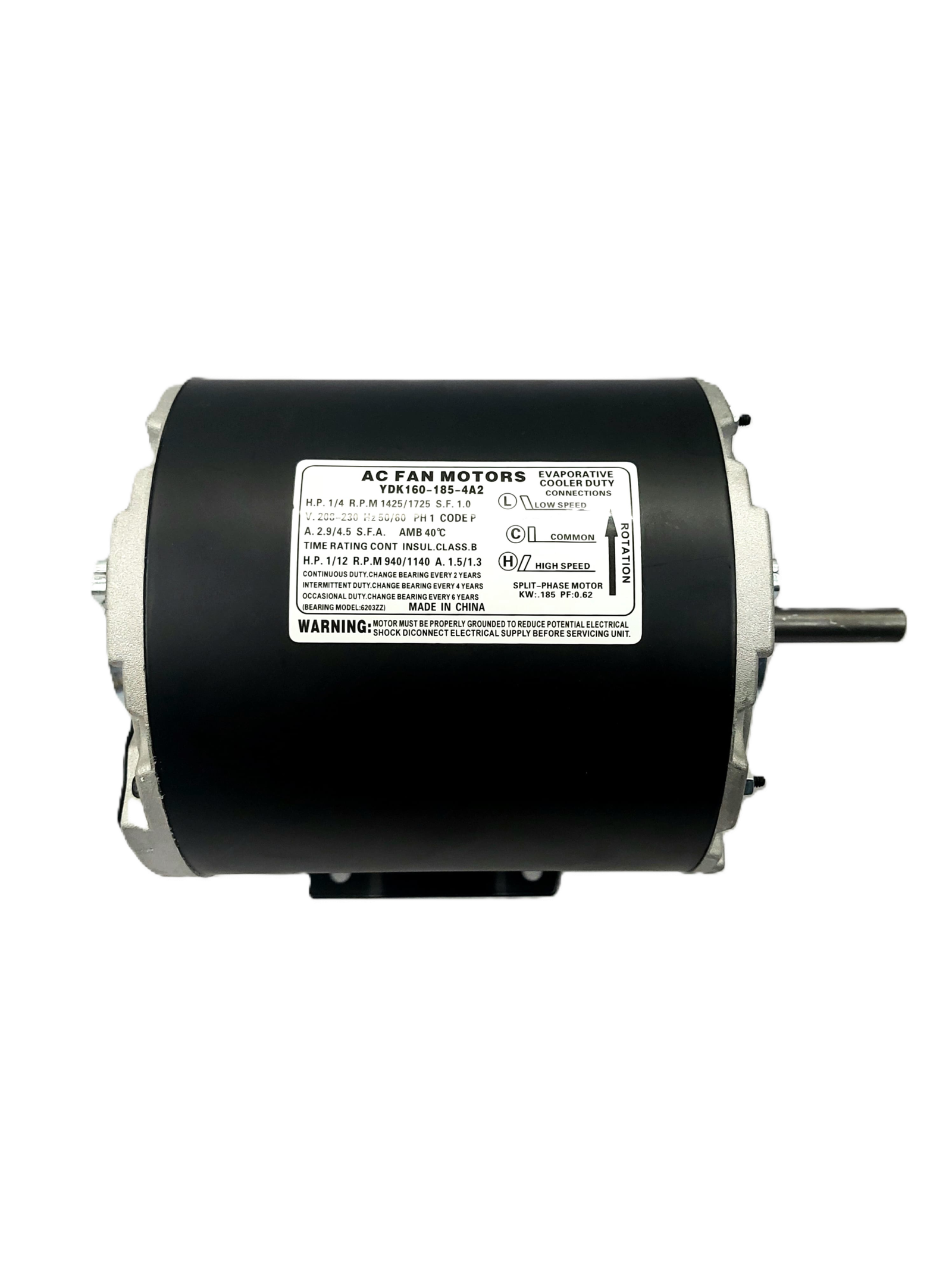

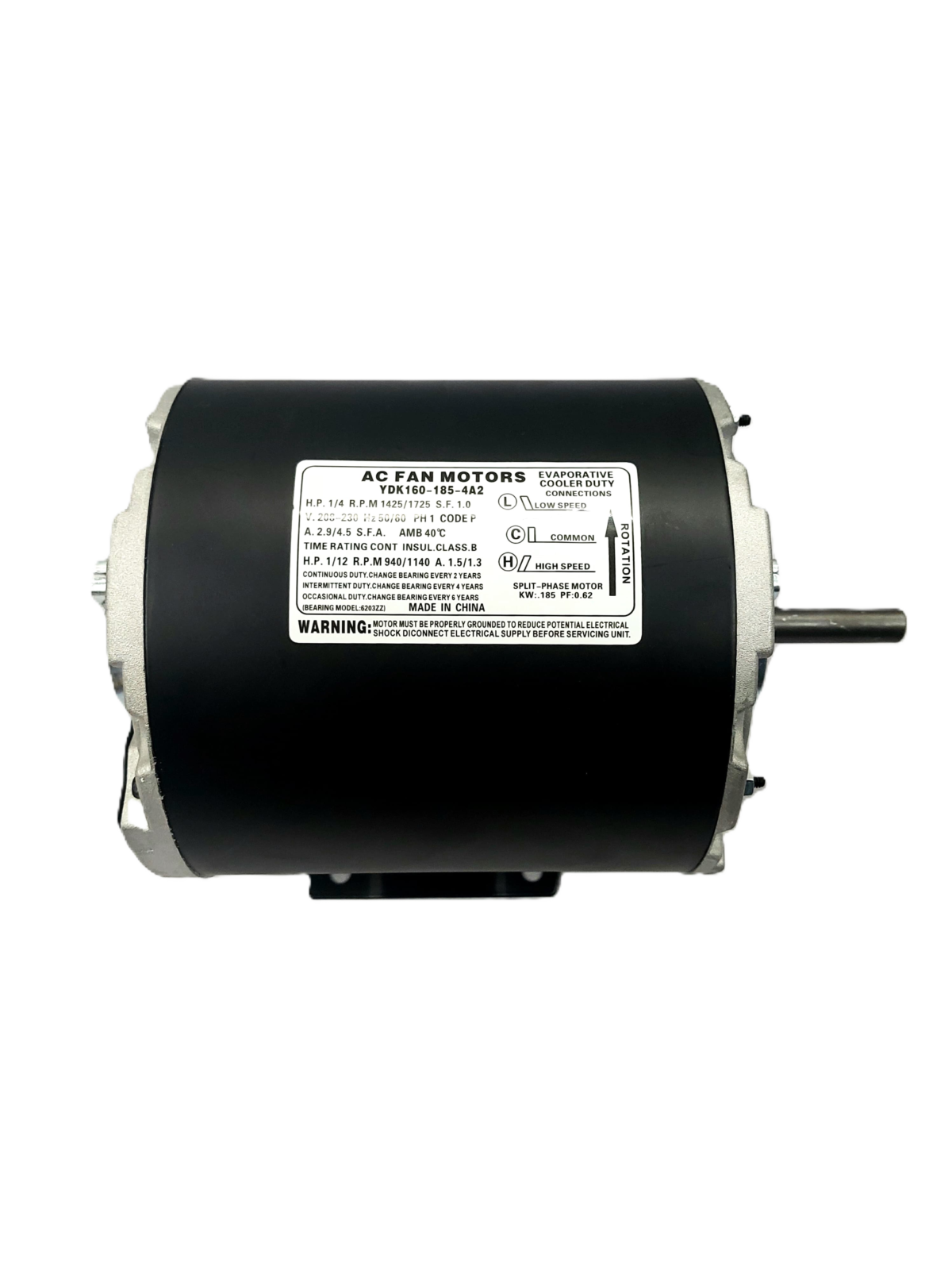

1/4 HP YDK160-185-4A2 AC Cooler Fan Motor
This is an AC Cooler Fan Motor, specifically model YDK160-185-4A2. It is designed for evaporative (desert) cooler duty.
Technical Specifications
- Model: YDK160-185-4A2
- Horsepower (H.P.): Dual-speed rated at 1/4 HP (High) and 1/12 HP (Low).
- Voltage: 208-230V, 50/60Hz, Single Phase (PH 1).
- RPM: 1425 / 1725 RPM.
- Amperage: 2.9A / 4.5A.
- Insulation: Class B, rated for continuous duty in temperatures up to 40°C.
- Bearing Type: 6202Z (Requires periodic oiling).
Wiring ConnectionsThe label provides a clear wiring guide for installation:
-
- Common (C): Marked with a square.
- High Speed (H): Marked with a circle.
- Low Speed (L): Marked with a circle.
- Rotation: Indicated by an arrow on the right side of the label.
-
Description
Description
This is an AC Cooler Fan Motor, specifically model YDK160-185-4A2. It is designed for evaporative (desert) cooler duty.
Technical Specifications
- Model: YDK160-185-4A2
- Horsepower (H.P.): Dual-speed rated at 1/4 HP (High) and 1/12 HP (Low).
- Voltage: 208-230V, 50/60Hz, Single Phase (PH 1).
- RPM: 1425 / 1725 RPM.
- Amperage: 2.9A / 4.5A.
- Insulation: Class B, rated for continuous duty in temperatures up to 40°C.
- Bearing Type: 6202Z (Requires periodic oiling).
Wiring ConnectionsThe label provides a clear wiring guide for installation:
-
- Common (C): Marked with a square.
- High Speed (H): Marked with a circle.
- Low Speed (L): Marked with a circle.
- Rotation: Indicated by an arrow on the right side of the label.
-
