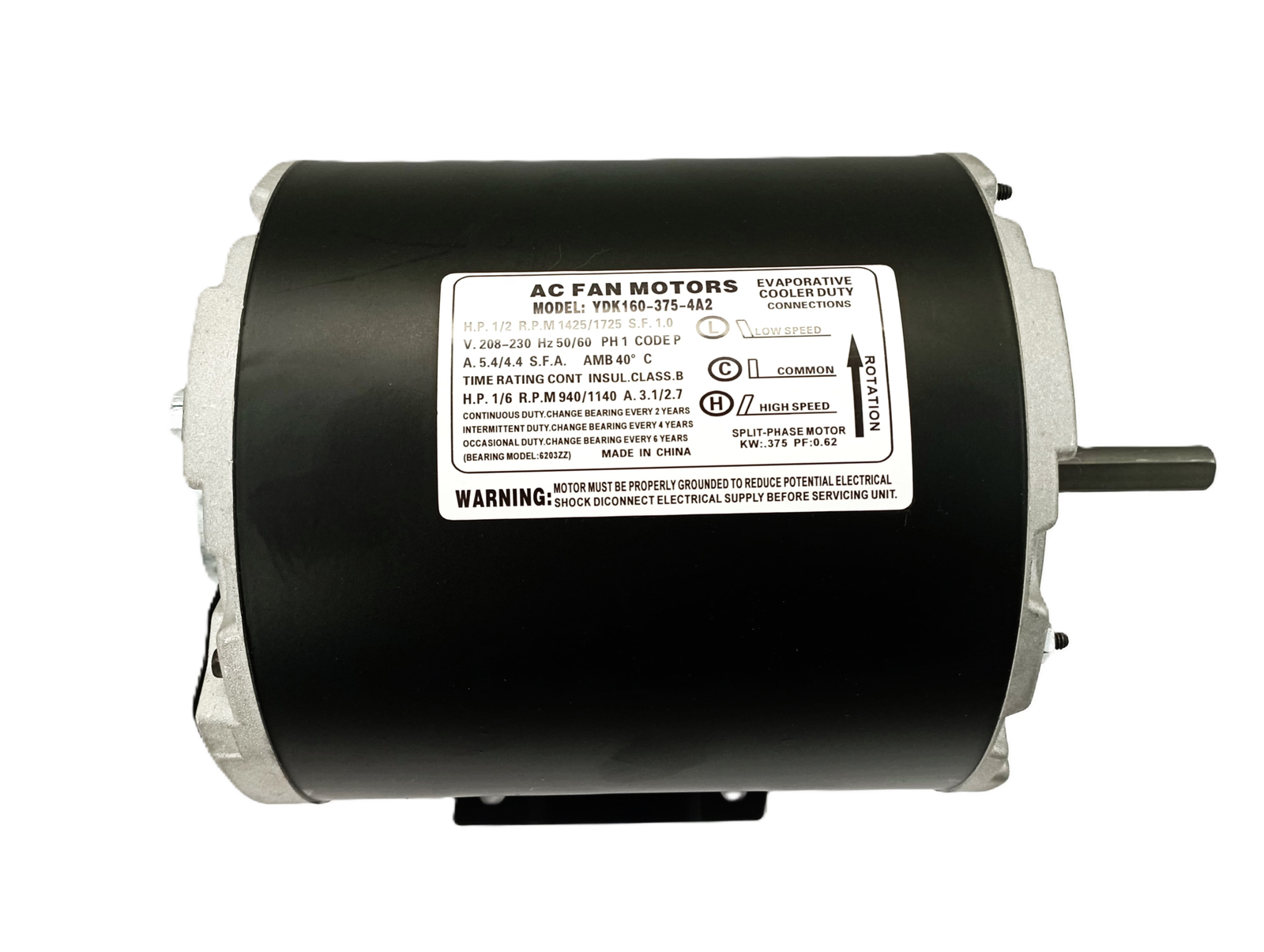

1/2 HP YDK160-375-4A2 AC Cooler Fan Motor
This is an AC Cooler Fan Motor, specifically model YDK160-375-4A2. It’s a versatile motor commonly used in evaporative (desert) coolers.
Technical Specifications
- Model: YDK 160-375-4A2
- Horsepower (H.P.): Dual-rated at 1/2 HP and 1/6 HP for high and low-speed operations.
- Voltage: 208-230V, 50/60Hz, Single Phase (PH 1).
- Amperage: 5.4A / 4.4A.
- RPM: 1425 / 1725 RPM.
- Insulation: Class B, rated for continuous duty.
- Origin: Made in China.
Description
Description
This is an AC Cooler Fan Motor, specifically model YDK160-375-4A2. It’s a versatile motor commonly used in evaporative (desert) coolers.
Technical Specifications
- Model: YDK 160-375-4A2
- Horsepower (H.P.): Dual-rated at 1/2 HP and 1/6 HP for high and low-speed operations.
- Voltage: 208-230V, 50/60Hz, Single Phase (PH 1).
- Amperage: 5.4A / 4.4A.
- RPM: 1425 / 1725 RPM.
- Insulation: Class B, rated for continuous duty.
- Origin: Made in China.
Wiring & InstallationThe motor features a standard 3-wire connection for evaporative cooler duty:
- Common (C): Usually the White wire.
- High Speed (H): Usually the Black wire.
- Low Speed (L): Usually the Red wire.
- Rotation: It is designed for a specific rotation direction as indicated by the “ROTATION” arrow on the label.
